先來看看幾個實現的

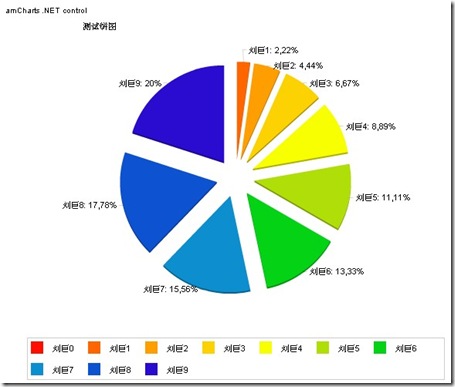

1.餅圖

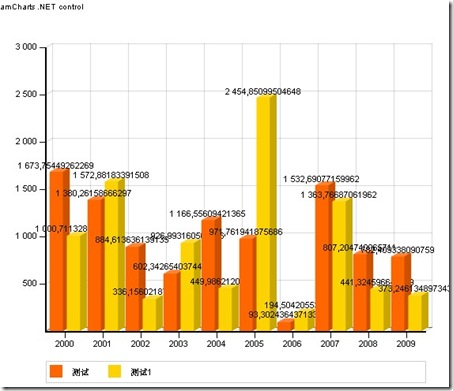

2.柱型圖

3.線型圖

第一步

當然是要添加dll引用

然后再把相關文件放到目錄里

就像在項目里添加FCK編輯器一樣

這樣的話.開始的環境就好了

我的目錄結構是這樣的

當然只是為了測試,就沒有那樣去什么什么了
當然,在每個頁的開始要注冊一下這個dll
<%@ Register Assembly="am.Charts" Namespace="am.Charts" TagPrefix="cc1" %>
然后就可以用了
餅圖
<cc1:PieChart runat="server" ID="PieChart1"></cc1:PieChart>
后臺代碼

Code
protected void Page_Load(object sender, EventArgs e)
        {
            for (int i = 0; i < 10; i++)
            {
                //PieChartDataItem pcd = new PieChartDataItem("劉巨" + i.ToString(), i);
                PieChartDataItem pcd1 = new PieChartDataItem();
                pcd1.Description = "Description" + i.ToString();
                pcd1.Title = "劉巨" + i.ToString();
                //設置點擊時候的鏈接
                //pcd1.Url = "http://www.cnblogs.com/liuju150/";
                pcd1.LabelRadius = 1;
                pcd1.Value = i;
                pcd1.PullOut = true;
                PieChart1.Items.Add(pcd1);
            }
            PieChart1.Width = 600;
            PieChart1.Height = 500;
            //設置鏈接的跳轉方式
            //PieChart1.SliceLinkTarget = "_blank";
            PieChart1.ScientificMax = 20;
            PieChart1.Labels.Add(new ChartLabel("測試餅圖", new Unit(100), new Unit(20)));
            PieChart1.ToolTip = "測試餅圖2";
        }

Code
        protected void Page_Load(object sender, EventArgs e)
        {
            DataSet ds = new DataSet("column");
            DataTable dt = new DataTable("columnTable");
            DataColumn dc_y = new DataColumn("year");
            DataColumn dc_v = new DataColumn("val");

            DataColumn dc_v1 = new DataColumn("val1");



            dt.Columns.Add(dc_y);
            dt.Columns.Add(dc_v);
            dt.Columns.Add(dc_v1);
            Random rd = new Random();
            for (int i = 2000; i < 2010; i++)
            {
                DataRow dr = dt.NewRow();
                dr[dc_y] = i.ToString();
                dr[dc_v] = (rd.NextDouble() * i).ToString();
                dr[dc_v1] = (rd.NextDouble() * (i + i / 3)).ToString();
                dt.Rows.Add(dr);
            }
            ds.Tables.Add(dt);

            //立體感覺深度
            ColumnChart1.Depth = 10;
            //動態升長時間
            ColumnChart1.ColumnGrowTime = 5;
            ColumnChart1.Width = new Unit(600);
            ColumnChart1.Height = new Unit(500);
            ColumnChart1.PlotAreaBackgroundColor = Color.Yellow;

            ColumnChart1.ChartDirectory = "~/amcharts/amcolumn/";
            //柱型1
            ColumnChartGraph ccg = new ColumnChartGraph();
            ccg.DataSource = ds;
            ccg.DataSeriesItemIDField = "year";
            ccg.Title = "測試";
            ccg.DataValueField = "val";
            //形狀,可以是柱型,也可以是線型
            ccg.GraphType = ColumnChartGraphTypes.Column;
            ColumnChart1.Graphs.Add(ccg);

            ColumnChartGraph ccg1 = new ColumnChartGraph();
            ccg1.DataSource = ds;
            ccg1.DataSeriesItemIDField = "year";
            ccg1.Title = "測試1";
            ccg1.DataValueField = "val1";
            ccg1.GraphType = ColumnChartGraphTypes.Column;
            ColumnChart1.Graphs.Add(ccg1);

            //設置上面顯示的文字格式
            ColumnChart1.ColumnDataLabelFormatString = "{value}";
            ColumnChart1.LineBalloonTextFormatString = "{value}";

            ColumnChart1.DataSource = ds;
            ColumnChart1.DataSeriesIDField = "year";
            ColumnChart1.DataBind();
        }

Code
        protected void Page_Load(object sender, EventArgs e)
        {
            //自己添加一個數據
            DataSet ds = new DataSet("Line");
            DataTable dt = new DataTable("LineTable");
            DataColumn dc_y = new DataColumn("year");
            DataColumn dc_v = new DataColumn("val");

            DataColumn dc_v1 = new DataColumn("val1");

            dt.Columns.Add(dc_y);
            dt.Columns.Add(dc_v);
            dt.Columns.Add(dc_v1);
            Random rd = new Random();
            for (int i = 1987; i < 2010; i++)
            {
                DataRow dr = dt.NewRow();
                dr[dc_y] = i.ToString();
                dr[dc_v] = (rd.NextDouble() * i).ToString();
                dr[dc_v1] = (rd.NextDouble() * (i + i / 3)).ToString();
                dt.Rows.Add(dr);
            }
            ds.Tables.Add(dt);

            //設置圖形的長高
            LineChart1.Width = new Unit(600);
            LineChart1.Height = new Unit(400);

            //添加一個線條
            LineChartGraph lcg = new LineChartGraph();
            //這里是線條峰點的形狀(正方形):實心圓,空心圓.
            lcg.Bullet = LineChartBulletTypes.Square;
            //這里是線條的顏色
            //lcg.BulletColor = Color.Yellow;
            //向下面積的顏色
            lcg.FillColor = Color.Yellow;
            //向下面積的透明度
            lcg.FillAlpha = Convert.ToByte(40);
            //Y軸值在右邊(默認在左邊)
            lcg.Axis = LineChartAxes.Right;

            lcg.DataSource = ds;
            lcg.DataSeriesItemIDField = "year";
            lcg.DataValueField = "val";
            lcg.Title = "測試1";
            LineChart1.Graphs.Add(lcg);

            //添加第二個線條
            LineChartGraph lcg1 = new LineChartGraph();
            lcg1.Bullet = LineChartBulletTypes.RoundOutline;

            lcg1.DataSource = ds;
            lcg1.DataSeriesItemIDField = "year";
            lcg1.DataValueField = "val1";
            lcg1.Title = "測試2";
            LineChart1.Graphs.Add(lcg1);

            LineChart1.DataSource = ds;
            LineChart1.DataSeriesIDField = "year";
            LineChart1.DataBind();

        }
