Android Fragment如何與Activity交互,與ActionBar,MenuItem集成

文章來源:365jz.com     點擊數:284    更新時間:2017-11-29 12:09   參與評論

上一節內容:什么是Android Fragment及生命周期/靜態和動態的使用Fragment


如何管理Fragment回退棧,F(xiàn)ragment如何與Activity交互,F(xiàn)ragment與Activity交互的最佳實踐,沒有視圖的Fragment的用處,使用Fragment創建對話框,如何與ActionBar,MenuItem集成等~~

1、管理Fragment回退棧

類似與Android系統為Activity維護一個任務棧,我們也可以通過Activity維護一個回退棧來保存每次Fragment事務發生的變化。如果你將Fragment任務添加到回退棧,當用戶點擊后退按鈕時,將看到上一次的保存的Fragment。一旦Fragment完全從后退棧中彈出,用戶再次點擊后退鍵,則退出當前Activity。

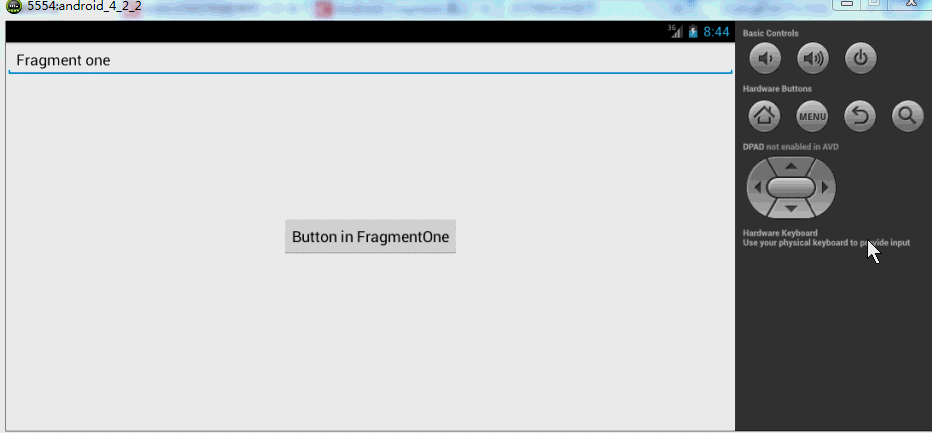

看這樣一個效果圖:

點擊第一個按鈕,切換到第二個界面,點擊第二個按鈕,切換到第三個界面,然后點擊Back鍵依次回退。這像不像初學Android時的Activity跳轉,當然了,這里肯定不是,不然我就跪了。這里是Fragment實現的,用戶點擊Back,實際是Fragment回退棧不斷的彈棧。

如何添加一個Fragment事務到回退棧:

FragmentTransaction.addToBackStack(String)

下面講解代碼:很明顯一共是3個Fragment和一個Activity.

先看Activity的布局文件:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <FrameLayout
        android:id="@+id/id_content"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent" >
    </FrameLayout>

</RelativeLayout>

不同的Fragment就在這個FrameLayout中顯示。
MainActivity.java

package com.zhy.zhy_fragments;

import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.view.Window;

public class MainActivity extends Activity



    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_main);

        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.add(R.id.id_content, new FragmentOne(),"ONE");
        tx.commit();
    }


很簡單,直接將FragmentOne添加到布局文件中的FrameLayout中,注意這里并沒有調用FragmentTransaction.addToBackStack(String),因?yàn)槲也幌矚g在當前顯示時,點擊Back鍵出現白板。而是正確的相應Back鍵,即退出我們的Activity.
下面是FragmentOne

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;

public class FragmentOne extends Fragment implements OnClickListener


    private Button mBtn;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_one, container, false);
        mBtn = (Button) view.findViewById(R.id.id_fragment_one_btn);
        mBtn.setOnClickListener(this);
        return view;
    }

    @Override
    public void onClick(View v)
    {
        FragmentTwo fTwo = new FragmentTwo();
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.replace(R.id.id_content, fTwo, "TWO");
        tx.addToBackStack(null);
        tx.commit();

    }



我們在點擊FragmentOne中的按鈕時,使用了replace方法,如果你看了前一篇博客,一定記得replace是remove和add的合體,并且如果不添加事務到回退棧,前一個Fragment實例會被銷毀。這里很明顯,我們調用tx.addToBackStack(null);將當前的事務添加到了回退棧,所以FragmentOne實例不會被銷毀,但是視圖層次依然會被銷毀,即會調用onDestoryView和onCreateView,證據就是:仔細看上面的效果圖,我們在跳轉前在文本框輸入的內容,在用戶Back得到第一個界面的時候不見了。
接下來FragmentTwo

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;

public class FragmentTwo extends Fragment implements OnClickListener


    private Button mBtn ;
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_two, container, false);
        mBtn = (Button) view.findViewById(R.id.id_fragment_two_btn);
        mBtn.setOnClickListener(this);
        return view ;
    }
    @Override
    public void onClick(View v)
    {
        FragmentThree fThree = new FragmentThree();
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.hide(this);
        tx.add(R.id.id_content , fThree, "THREE");
//      tx.replace(R.id.id_content, fThree, "THREE");
        tx.addToBackStack(null);
        tx.commit();
    }




這里點擊時,我們沒有使用replace,而是先隱藏了當前的Fragment,然后添加了FragmentThree的實例,最后將事務添加到回退棧。這樣做的目的是為了給大家提供一種方案:如果不希望視圖重繪該怎么做,請?jiān)俅巫屑?xì)看效果圖,我們在FragmentTwo的EditText填寫的內容,用戶Back回來時,數據還在~~~
最后FragmentThree就是簡單的Toast了:

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.Toast;

public class FragmentThree extends Fragment implements OnClickListener


    private Button mBtn;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_three, container, false);
        mBtn = (Button) view.findViewById(R.id.id_fragment_three_btn);
        mBtn.setOnClickListener(this);
        return view;
    }

    @Override
    public void onClick(View v)
    {
        Toast.makeText(getActivity(), " i am a btn in Fragment three",
                Toast.LENGTH_SHORT).show();
    }



好了,經過上面的介紹,應該已經知道Fragment回退棧是怎么一回事了,以及hide,replace等各自的應用的場景。
這里極其注意一點:上面的整體代碼不具有任何參考價值,純粹為了顯示回退棧,在后面講解了Fragment與Activity通信以后,會重構上面的代碼!
2、Fragment與Activity通信

因?yàn)樗械腇ragment都是依附于Activity的,所以通信起來并不復雜,大概歸納為:
a、如果你Activity中包含自己管理的Fragment的引用,可以通過引用直接訪問所有的Fragment的public方法
b、如果Activity中未保存任何Fragment的引用,那么沒關系,每個Fragment都有一個唯一的TAG或者ID,可以通過getFragmentManager.findFragmentByTag()或者findFragmentById()獲得任何Fragment實例,然后進行操作。
c、在Fragment中可以通過getActivity得到當前綁定的Activity的實例,然后進行操作。
注:如果在Fragment中需要Context,可以通過調用getActivity(),如果該Context需要在Activity被銷毀后還存在,則使用getActivity().getApplicationContext()。
3、Fragment與Activity通信的最佳實踐

因?yàn)橐紤]Fragment的重復使用,所以必須降低Fragment與Activity的耦合,而且Fragment更不應該直接操作別的Fragment,畢竟Fragment操作應該由它的管理者Activity來決定。
下面我通過兩種方式的代碼,分別重構,F(xiàn)ragmentOne和FragmentTwo的點擊事件,以及Activity對點擊事件的響應:
首先看FragmentOne

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;

public class FragmentOne extends Fragment implements OnClickListener

    private Button mBtn;

    /**
     * 設置按鈕點擊的回調
     * @author zhy
     *
     */
    public interface FOneBtnClickListener
    {
        void onFOneBtnClick();
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_one, container, false);
        mBtn = (Button) view.findViewById(R.id.id_fragment_one_btn);
        mBtn.setOnClickListener(this);
        return view;
    }

    /**
     * 交給宿主Activity處理,如果它希望處理
     */
    @Override
    public void onClick(View v)
    {
        if (getActivity() instanceof FOneBtnClickListener)
        {
            ((FOneBtnClickListener) getActivity()).onFOneBtnClick();
        }
    }



可以看到現在的FragmentOne不和任何Activity耦合,任何Activity都可以使用;并且我們聲明了一個接口,來回調其點擊事件,想要管理其點擊事件的Activity實現此接口就即可??梢钥吹轿覀冊趏nClick中首先判斷了當前綁定的Activity是否實現了該接口,如果實現了則調用。
再看FragmentTwo

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;

public class FragmentTwo extends Fragment implements OnClickListener



    private Button mBtn ;

    private FTwoBtnClickListener fTwoBtnClickListener ;

    public interface FTwoBtnClickListener
    {
        void onFTwoBtnClick();
    }
    //設置回調接口
    public void setfTwoBtnClickListener(FTwoBtnClickListener fTwoBtnClickListener)
    {
        this.fTwoBtnClickListener = fTwoBtnClickListener;
    }
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_two, container, false);
        mBtn = (Button) view.findViewById(R.id.id_fragment_two_btn);
        mBtn.setOnClickListener(this);
        return view ;
    }
    @Override
    public void onClick(View v)
    {
        if(fTwoBtnClickListener != null)
        {
            fTwoBtnClickListener.onFTwoBtnClick();
        }
    }



與FragmentOne極其類似,但是我們提供了setListener這樣的方法,意味著Activity不僅需要實現該接口,還必須顯示調用mFTwo.setfTwoBtnClickListener(this)。
最后看Activity :

package com.zhy.zhy_fragments;

import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.view.Window;

import com.zhy.zhy_fragments.FragmentOne.FOneBtnClickListener;
import com.zhy.zhy_fragments.FragmentTwo.FTwoBtnClickListener;

public class MainActivity extends Activity implements FOneBtnClickListener,
        FTwoBtnClickListener


    private FragmentOne mFOne;
    private FragmentTwo mFTwo;
    private FragmentThree mFThree;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_main);

        mFOne = new FragmentOne();
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.add(R.id.id_content, mFOne, "ONE");
        tx.commit();
    }

    /**
     * FragmentOne 按鈕點擊時的回調
     */
    @Override
    public void onFOneBtnClick()
    {

        if (mFTwo == null)
        {
            mFTwo = new FragmentTwo();
            mFTwo.setfTwoBtnClickListener(this);
        }
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.replace(R.id.id_content, mFTwo, "TWO");
        tx.addToBackStack(null);
        tx.commit();
    }

    /**
     * FragmentTwo 按鈕點擊時的回調
     */
    @Override
    public void onFTwoBtnClick()
    {
        if (mFThree == null)
        {
            mFThree = new FragmentThree();

        }
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.hide(mFTwo);
        tx.add(R.id.id_content, mFThree, "THREE");
        // tx.replace(R.id.id_content, fThree, "THREE");
        tx.addToBackStack(null);
        tx.commit();
    }



代碼重構結束,與開始的效果一模一樣。上面兩種通信方式都是值得推薦的,隨便選擇一種自己喜歡的。這里再提一下:雖然Fragment和Activity可以通過getActivity與findFragmentByTag或者findFragmentById,進行任何操作,甚至在Fragment里面操作另外的Fragment,但是沒有特殊理由是絕對不提倡的。Activity擔任的是Fragment間類似總線一樣的角色,應當由它決定Fragment如何操作。另外雖然Fragment不能響應Intent打開,但是Activity可以,Activity可以接收Intent,然后根據參數判斷顯示哪個Fragment。
4、如何處理運行時配置發生變化

運行時配置發生變化,最常見的就是屏幕發生旋轉,如果你不知道如何處理屏幕變化可以參考:Android 屏幕旋轉 處理 AsyncTask 和 ProgressDialog 的最佳方案
這里提一下:很多人覺得強制設置屏幕的方向就可以了,但是有一點,當你的應用被至于后臺(例如用戶點擊了home),長時間沒有返回的時候,你的應用也會被重新啟動。比如上例:如果你把上面的例子你至于FragmentThree界面,然后處于后臺狀態,長時間后你會發現當你再次通過home打開時,上面FragmentThree與FragmentOne疊加在一起,這就是因?yàn)槟愕腁ctivity重新啟動,在原來的FragmentThree上又繪制了一個FragmentOne。
好了,下面看一段代碼:
Activity:

package com.zhy.zhy_fragments;

import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.view.Window;

public class MainActivity extends Activity


    private FragmentOne mFOne;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_main);

        mFOne = new FragmentOne();
        FragmentManager fm = getFragmentManager();
        FragmentTransaction tx = fm.beginTransaction();
        tx.add(R.id.id_content, mFOne, "ONE");
        tx.commit();

    }



Fragment

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class FragmentOne extends Fragment

    private static final String TAG = "FragmentOne";

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        Log.e(TAG, "onCreateView");
        View view = inflater.inflate(R.layout.fragment_one, container, false);
        return view;
    }

    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);

        Log.e(TAG, "onCreate");
    }

    @Override
    public void onDestroyView()
    {
        // TODO Auto-generated method stub
        super.onDestroyView();
        Log.e(TAG, "onDestroyView");
    }

    @Override
    public void onDestroy()
    {
        // TODO Auto-generated method stub
        super.onDestroy();
        Log.e(TAG, "onDestroy");
    }

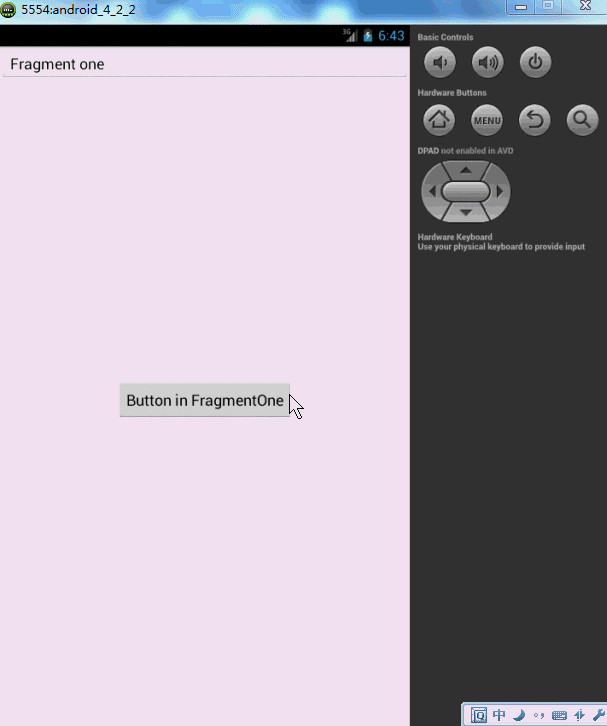

很簡單的代碼,當你運行之后,不斷的旋轉屏幕,你會發現每旋轉一次屏幕,屏幕上就多了一個FragmentOne的實例,并且后臺log會打印出許多套生命周期的回調。
類似:

07-20 08:18:46.651: E/FragmentOne(1633): onCreate
07-20 08:18:46.651: E/FragmentOne(1633): onCreate
07-20 08:18:46.651: E/FragmentOne(1633): onCreate
07-20 08:18:46.681: E/FragmentOne(1633): onCreateView
07-20 08:18:46.831: E/FragmentOne(1633): onCreateView
07-20 08:18:46.891: E/FragmentOne(1633): onCreateView


這是為什么呢,因?yàn)楫?dāng)屏幕發生旋轉,Activity發生重新啟動,默認的Activity中的Fragment也會跟著Activity重新創建;這樣造成當旋轉的時候,本身存在的Fragment會重新啟動,然后當執行Activity的onCreate時,又會再次實例化一個新的Fragment,這就是出現的原因。
那么如何解決呢:
其實通過檢查onCreate的參數Bundle savedInstanceState就可以判斷,當前是否發生Activity的重新創建:
默認的savedInstanceState會存儲一些數據,包括Fragment的實例:通過打印可以看出:

07-20 08:23:12.952: E/FragmentOne(1782): Bundle[{android:fragments=android.app.FragmentManagerState@40d0b7b8, android:viewHierarchyState=Bundle[{android:focusedViewId=2131230721, android:views=android.util.SparseArray@40d0af68}]}]
所以,我們簡單改一下代碼,只有在savedInstanceState==null時,才進行創建Fragment實例:
[java] view plain copy
package com.zhy.zhy_fragments;

import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.util.Log;
import android.view.Window;

public class MainActivity extends Activity


    private static final String TAG = "FragmentOne";
    private FragmentOne mFOne;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_main);

        Log.e(TAG, savedInstanceState+"");

        if(savedInstanceState == null)
        {
            mFOne = new FragmentOne();
            FragmentManager fm = getFragmentManager();
            FragmentTransaction tx = fm.beginTransaction();
            tx.add(R.id.id_content, mFOne, "ONE");
            tx.commit();
        }



    }



現在無論進行多次旋轉都只會有一個Fragment實例在Activity中。
現在還存在一個問題,就是重新繪制時,F(xiàn)ragment發生重建,原本的數據如何保持?
其實和Activity類似,F(xiàn)ragment也有onSaveInstanceState的方法,在此方法中進行保存數據,然后在onCreate或者onCreateView或者onActivityCreated進行恢復都可以。
由于篇幅原因,就不貼測試代碼了。
5、Fragmeny與ActionBar和MenuItem集成

Fragment可以添加自己的MenuItem到Activity的ActionBar或者可選菜單中。
a、在Fragment的onCreate中調用 setHasOptionsMenu(true);
b、然后在Fragment子類中實現onCreateOptionsMenu
c、如果希望在Fragment中處理MenuItem的點擊,也可以實現onOptionsItemSelected;當然了Activity也可以直接處理該MenuItem的點擊事件。
代碼:
Fragment

package com.zhy.zhy_fragments;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Toast;

public class FragmentOne extends Fragment


    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setHasOptionsMenu(true);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState)
    {
        View view = inflater.inflate(R.layout.fragment_one, container, false);
        return view;
    }

    @Override
    public void onCreateOptionsMenu(Menu menu, MenuInflater inflater)
    {
        inflater.inflate(R.menu.fragment_menu, menu);
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item)
    {
        switch (item.getItemId())
        {
        case R.id.id_menu_fra_test:
            Toast.makeText(getActivity(), "FragmentMenuItem1", Toast.LENGTH_SHORT).show();
            break;
        }
        return true;
    }



Activity

package com.zhy.zhy_fragments;

import android.app.Activity;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.util.Log;
import android.view.Menu;
import android.view.MenuItem;
import android.view.Window;
import android.widget.Toast;

public class MainActivity extends Activity


    private static final String TAG = "FragmentOne";
    private FragmentOne mFOne;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_main);

        Log.e(TAG, savedInstanceState + "");

        if (savedInstanceState == null)
        {
            mFOne = new FragmentOne();
            FragmentManager fm = getFragmentManager();
            FragmentTransaction tx = fm.beginTransaction();
            tx.add(R.id.id_content, mFOne, "ONE");
            tx.commit();
        }

    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu)
    {
        super.onCreateOptionsMenu(menu);
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item)
    {
        switch (item.getItemId())
        {
        case R.id.action_settings:
            Toast.makeText(this, "setting", Toast.LENGTH_SHORT).show();
            return true;
        default:
            //如果希望Fragment自己處理MenuItem點擊事件,一定不要忘了調用super.xxx
            return super.onOptionsItemSelected(item);
        }
    }



效果圖:



好了,可以很好的看到,F(xiàn)ragment可以添加MenuItem,也可以自己處理點擊~~~

6、沒有布局的Fragment的作用

沒有布局文件Fragment實際上是為了保存,當Activity重啟時,保存大量數據準備的

請參考博客:Android 屏幕旋轉 處理 AsyncTask 和 ProgressDialog 的最佳方案


7、使用Fragment創建對話框

這是Google推薦的方式,我也單獨寫過博客介紹,請參考:DialogFragment 創建對話框



好了,終于把Fragment相關的聯系到一起了,上述基本包含了Fragment所有的用法~~~相信大家如果能夠看完,一定有不少的收獲~~~



有任何問題,歡迎留言~~~

兩篇結束,相信你對Fragment已經有了一定的了解,那么在項目中的最佳實踐是什么呢?請移步:如何用好Android Fragment及注意事項教程

如對本文有疑問,請?zhí)峤坏浇涣髡搲?,廣大熱心網友會為你解答!! 點擊進入論壇

發表評論 (284人查看,0條評論)
請自覺遵守互聯網相關的政策法規,嚴禁發布色情、暴力、反動的言論。
昵稱:
最新評論
------分隔線----------------------------

其它欄目

· 建站教程
· 365學習

業務咨詢

· 技術支持
· 服務時間:9:00-18:00
365建站網二維碼

Powered by 365建站網 RSS地圖 HTML地圖

copyright © 2013-2024 版權所有 鄂ICP備17013400號
